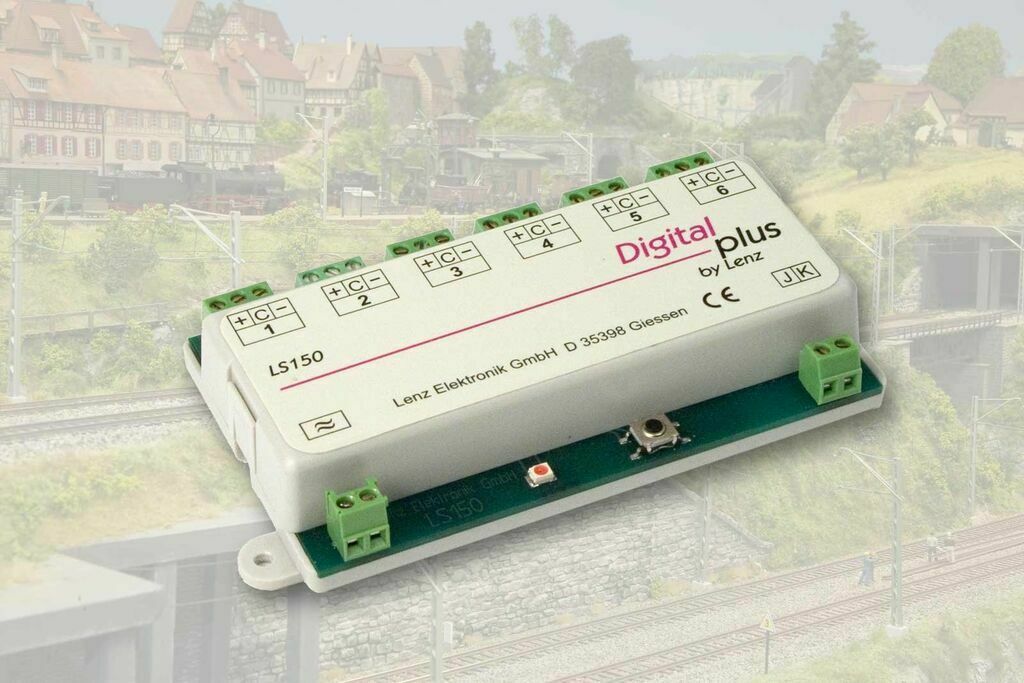

The DIGITAL plus LS150 turnout decoder provides cost effective turnout control for up to 6 independent turnouts.
This point decoder requires a separate 16v AC power supply, such as the Lenz TR100 or Gaugemaster WM1.
This point decoder requires a separate 16v AC power supply, such as the Lenz TR100 or Gaugemaster WM1.
- Suitable for twin-coil snap action switch machines
- Suitable for motorized switch machines
Will require a pair of diodes to convert to 2 wire operation eg Tortoise. - High current provision to support Peco and Atlas switch machines
- The 6 turnout addresses can be sequential or up to 6 user selected addresses.
- Control using separate push-buttons possible.
- Configuring the LS150 does not require a separate programming track and the parameters can be changed at any time in the future even after installation
